Automatic cow milking machine
Automatic cow milking machine

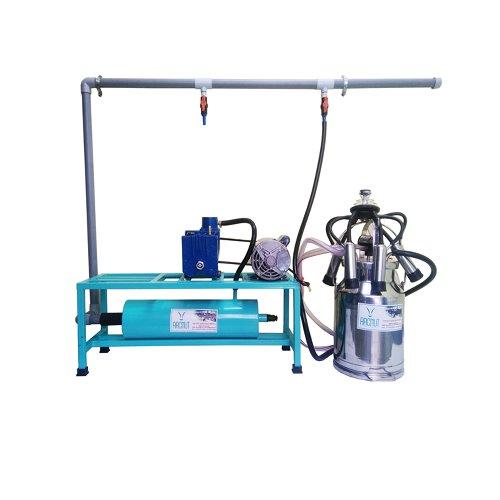

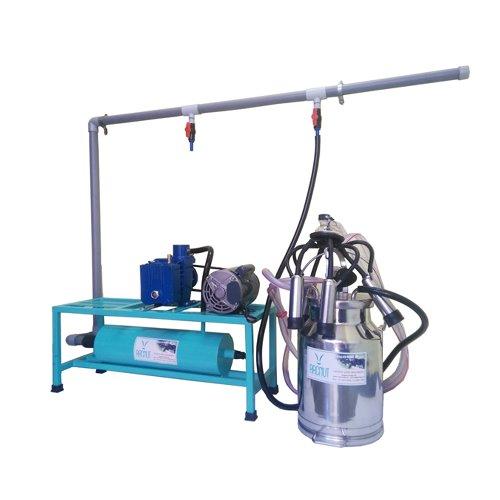

Automatic cow milking machine or Single bucket milking machines is suitable for 1 t 12 cows having 1/2 hp electricity power and 150 litre per minutes free air vacuum suction with 16 litre vacuum tank gives uniform vacuum for milk smoothly by connecting through pipeline, milking bucket having cluster arrangements to connect the liner to cow udder. Milking machine single bucket suitable for milk one cow at the time, time duration for one cow is approx. 5 to 6 minutes by shifting one another we can milk 10 to 12 cows per hour.
Specifications
Technical Specification
Motor
Motor power: ½ HP Single phases
Rotation (rpm): 1440 RPM
Suitable for 160 V to 230 V Operation; 50/60 Hz
Built-in Thermal over Load Protector
US Designed Switch for Reliability
Meets IS Performance Standards
Vacuum Pump
Flow: 160 liter per minutes at free air Pressure
Max pressure (Vacuum): 600 mm in hg
Oil lubricated pump
Vanes Fiber
Material Cast Iron
Vacuum Port 1/4 x BSP
Milking Unit (Bucket System)
Number of bucket: 1 no’s
Can: SS 304 -20 liter’s (ISO STANDARD)
Pulsator: 60:40 Ratios, two exit type
Milk liner: 24 mm silicon food grade
Teat cup: 4 number SS 304
Milk hoses: Nontoxic Food graded
Claw Weight (g): 2250 Gr.
Milk Claw Capacity: 240 cc
Milk Hose: 225mm (24mm x 14mm)
Pulse Hose: 200mm (14mm x 7mm
Body Frame
Body Frame
Material: Mild Steel
Vacuum Tank: 20 liter for uniform vacuum flow
Length: 90 cm
Width: 30 cm
Height: 30 cm
Adjustable
Powder coated

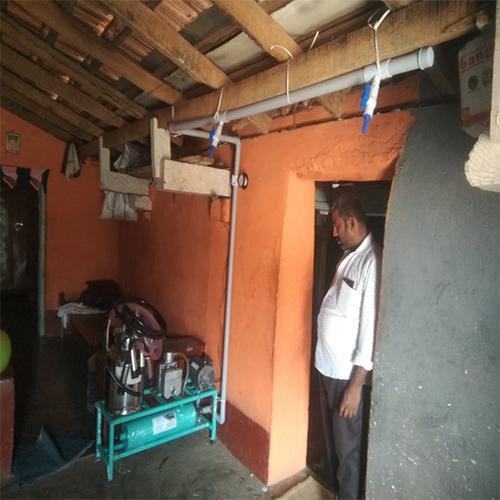

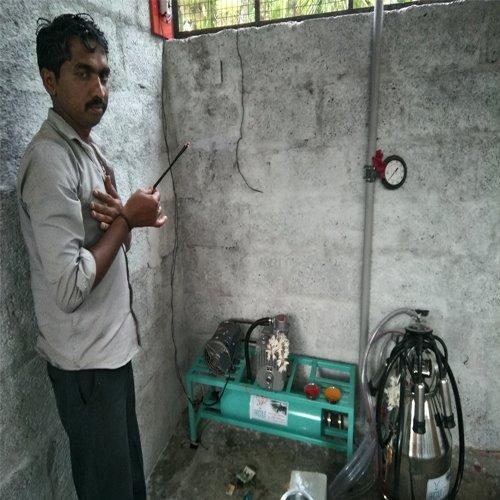

Pipeline or Vacuum line
PVC pipe: 40 mm
Line Max length: 50 feet
Gat valves: ½ “pvc shut off valves
Special Features
Suitability: 1 to 10 cows per hour
One cow at one time
Milking time: 5-6 minutes per cow Avg 12 litter
No moving parts in power source
Motor run in low voltage range ie 160v-230v
Efficient and Reliable for fast and Hygienic milking
Indigenous design with international Quality
Does not harm udder health
Easy to fit and remove
Low operating noise
Low operating temperature
Long vane life
Advantage
Sturdy and compact
Powder coated body avoid the corrosion
Non-stick bucket easy to clean
Efficient and Reliable for fast and Hygienic milking
High operational fluency
Noiseless functioning
Increase your productivity
Long service life
Does not harm udder health
Easy to fit and remove
High milking consistency
Zero maintenance
Optimum vacuum over the year
