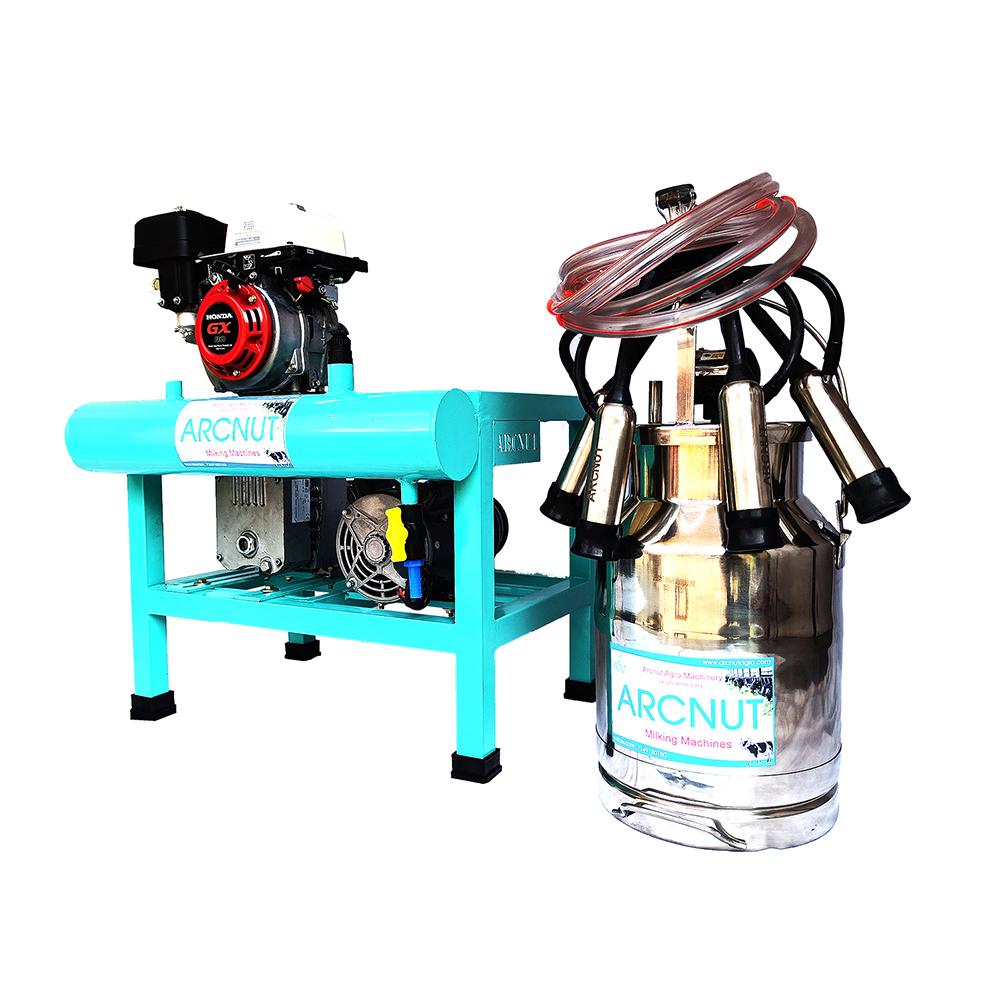

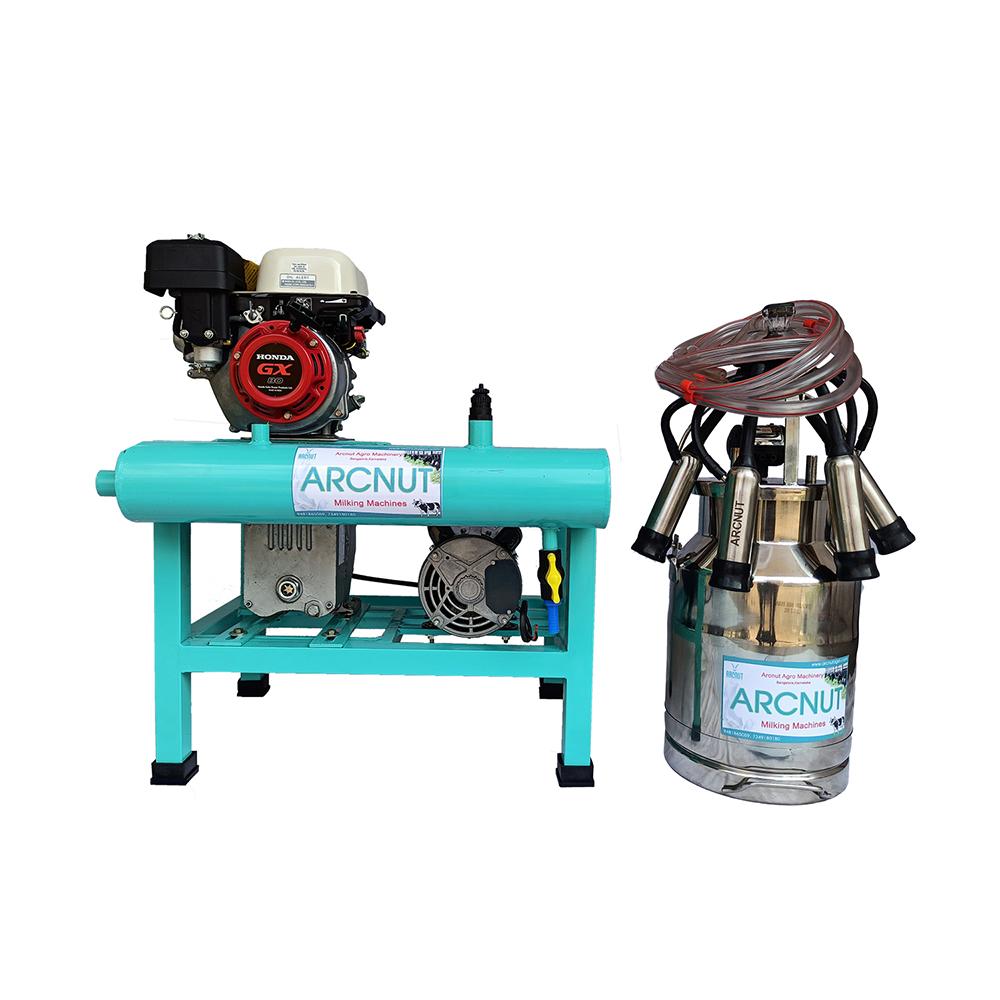

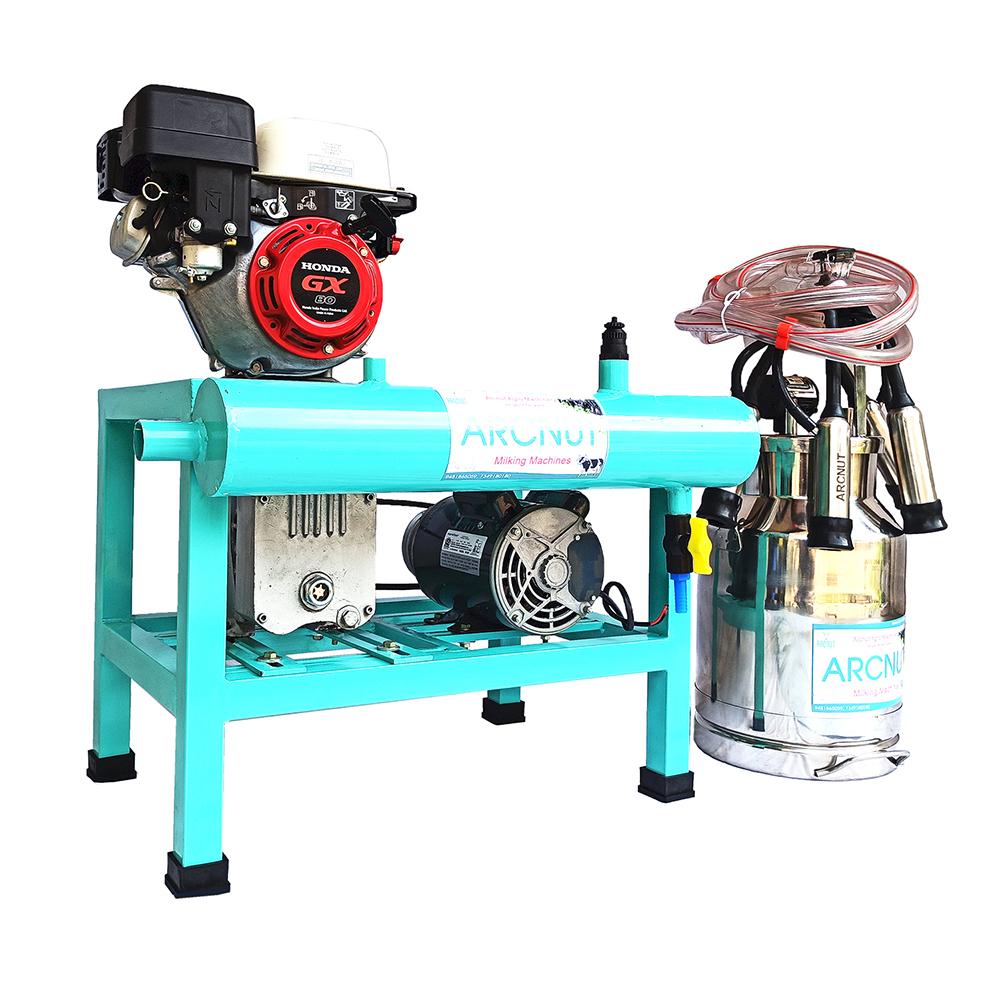

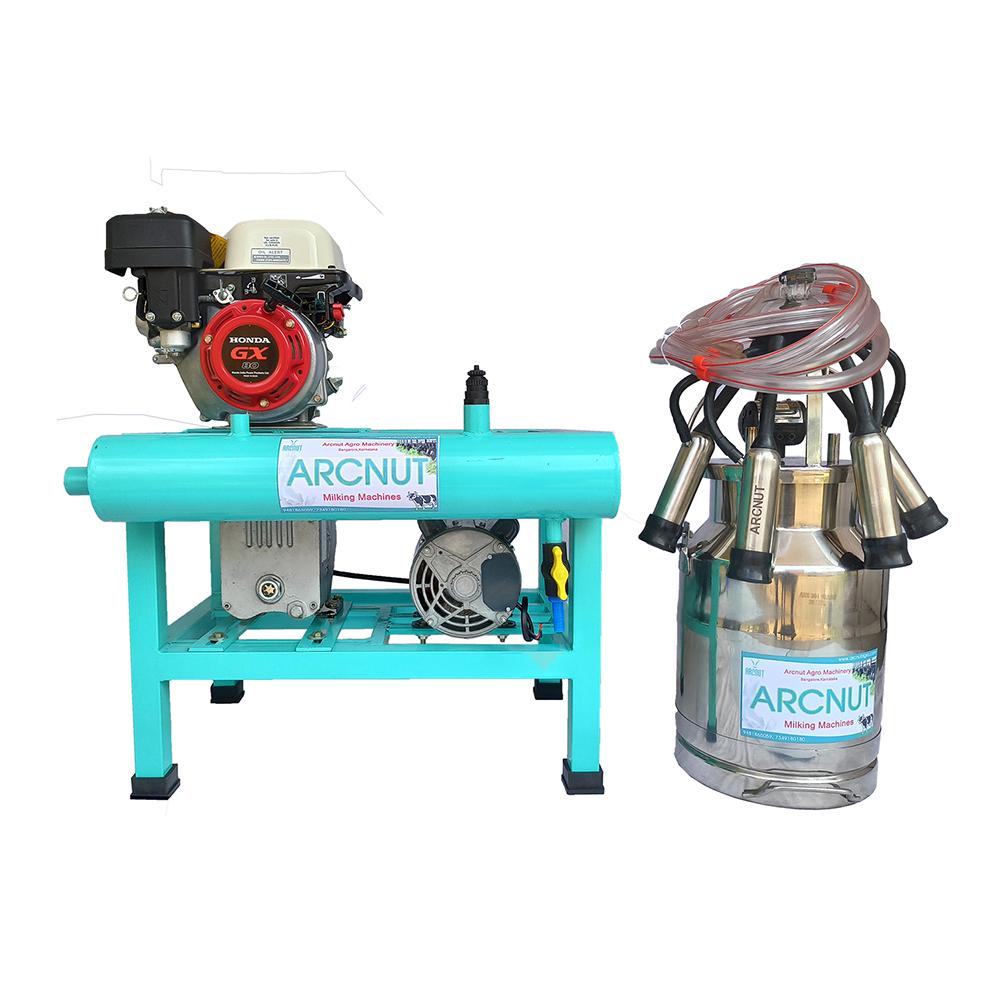

Arcnut Milking Machine Single Bucket with Petrol Operated is work with both electricity and petrol, it has belt drive connection by shifting the belt we can use both power source one by one, this machine work in single can at one time have ½ hp single phase electric powers and 150 lpm vacuum pump and petrol engine are sufficiently generate the required vacuum for milk by cattle, pipe line provide connection point for sufficient space for attach the milk bucket.
Specifications
Technical Specification
Motor
Motor power: ½ HP Single phases
Rotation (rpm): 1440 RPM
Suitable for 160 V to 230 V Operation; 50/60 Hz
Built-in Thermal over Load Protector
US Designed Switch for Reliability
Meets IS Performance Standards
Vacuum Pump
Flow: 160 liter per minutes at free air Pressure
Max pressure (Vacuum): 600 mm in hg
Oil lubricated pump
Vanes Fiber
Material Cast Iron
Vacuum Port 1/4 x BSP
Petrol Engine
Type Air cool , 4 Stroke , Petrol Engine , Ohv
Bore X Stroke : 46 X 48 Mm
Displacement : 79.7 Cm3
Net Power : 2hp / 3600 Rpm
Rated Power : 1.6hp / 3600 Rpm
Milking Unit (Bucket System)
Number of bucket: 1 no’s
Can: SS 304 -20 liter’s (ISO STANDARD)
Pulsator: 60:40 Ratios, two exit type
Milk liner: 24 mm silicon food grade
Teat cup: 4 number SS 304
Milk hoses: Nontoxic Food graded
Claw Weight (g): 2250 Gr.
Milk Claw Capacity: 240 cc
Milk Hose: 225mm (24mm x 14mm)
Pulse Hose: 200mm (14mm x 7mm
Body Frame
Body Frame
Material: Mild Steel
Vacuum Tank: 20 liter for uniform vacuum flow
Length: 90 cm
Width: 30 cm
Height: 30 cm
Adjustable
Powder coated
Pipeline or Vacuum line
PVC pipe: 40 mm
Line Max length: 50 feet
Gat valves: ½ “pvc shut off valves
