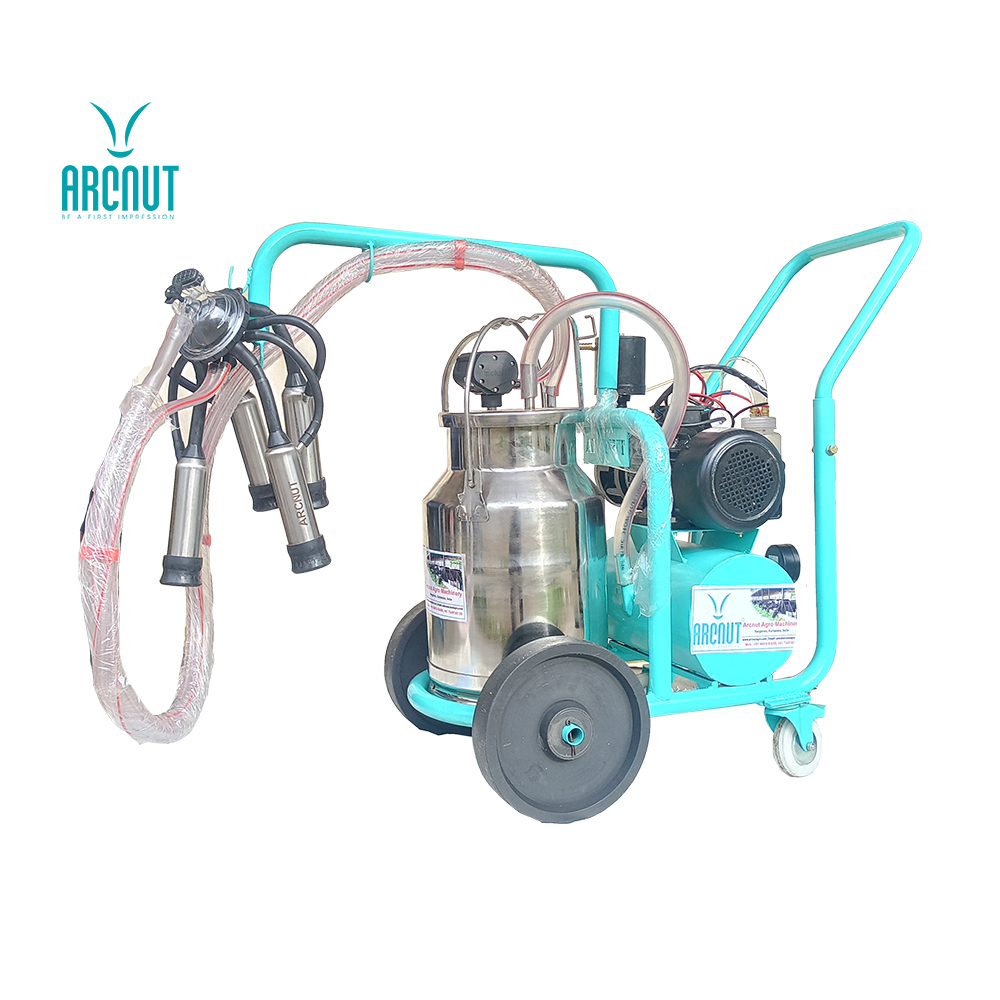

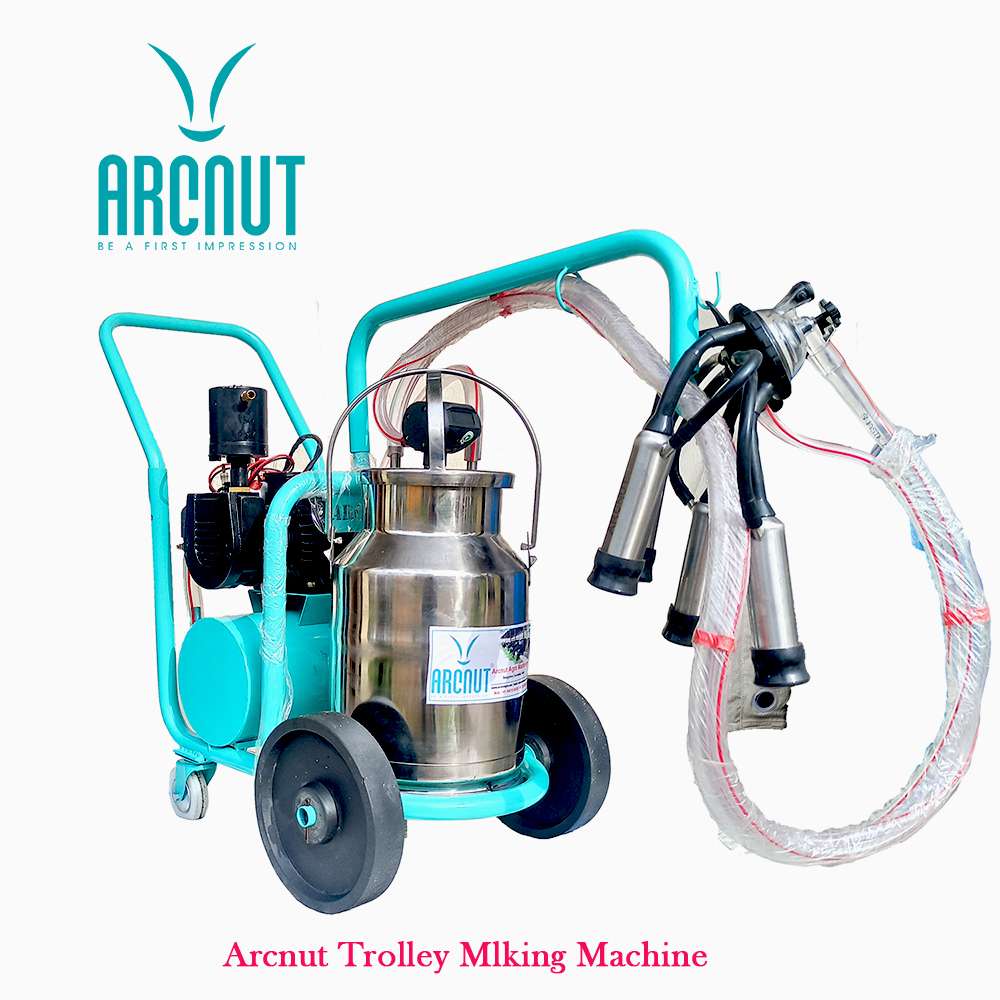

Trolley Milking machine
Trolley Milking Machine
Trolley Milking Machine is Suitable For Milking 1 to 10 cow is built by ½ Hp electric power with 150 Lpm direct drive vacuum pump with 600 mm hg free air negative pressure, by using 16 litter vacuum tank create the uniform flow to cluster unit for milk smoothly, smart pulsation technology having sufficient pressure for milk without leakage. The main feature is the entire machine mount on trolley facility for easy moments across dairy shed and carrying milk can and motors assembly unit.
Specifications
Specification
Motor cum Pump
Motor power: ½ HP Single phases
Rotation (rpm): 1440 RPM
Suitable for 220 V to 230 V Operation; 50/60 Hz
Vacuum Pump
Flow: 150 liter per minutes at free air Pressure
Max pressure (Vacuum): 600 mm in hg
Oil lubricated pump
Vanes Fiber
Material Cast Iron
Vacuum Port 1/4 x BSP
Milking Unit (Bucket System)
Number of bucket: 1 no’s
Can: SS 304 -20 liter’s (ISO STANDARD)
Pulsator: 60:40 Ratios, two exit type
Milk liner: 24 mm silicon food grade
Teat cup: 4 number SS 304
Milk hoses: Nontoxic Food graded
Claw Weight (g): 2250 Gr.
Milk Claw Capacity: 240 cc
Milk Hose: 225mm (24mm x 14mm)
Pulse Hose: 200mm (14mm x 7mm
Body Frame
Material: Mild Steel
Vacuum Tank: 6 liter for uniform vacuum flow
Trolley
Length:65 cm
Width: 60 cm
Height:60 cm
Special Features
Trolley mounted
Ground Clearance 125 mm
Easy to Carry Across dairy shed
Fully Powder Coated Body Prevent the Corrosion
Vacuum Tank Drainer Valve Facility
Machine Rigidity is well
Integration of milking and vacuum unit
Advantage
Sturdy and compact
Powder coated body avoid the corrosion
Non-stick bucket easy to clean
Efficient and Reliable for fast and Hygienic milking
High operational fluency
Noiseless functioning
Increase your productivity
Long service life
Does not harm udder health
Easy to fit and remove
High milking consistency
Zero maintenance
Optimum vacuum over the year
